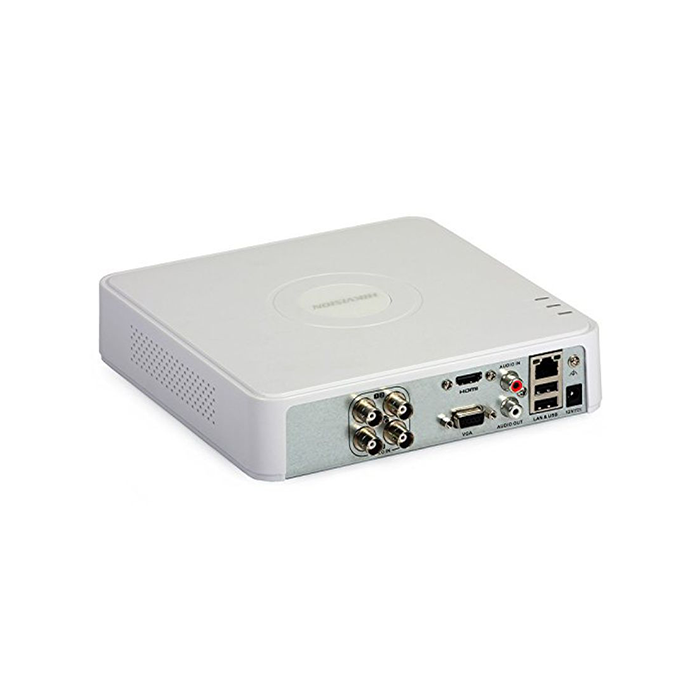

DS-7104HGHI-F1 4 Channel DVR PVC CASING

Description

Description

Model DS-7104NI-Q1 DS-7108NI-Q1

Video input IP video input

• 4-ch 8-ch
• Up to 4 MP resolution

Network

• Incoming bandwidth 40 Mbps 60 Mbps
• Outgoing bandwidth 60 Mbps

Video output

• Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI/VGA output
• resolution
• 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
• 768/60Hz

Decoding

• Decoding format H.265+/H.265/ H.264+/H.264
• Live view / Playback
• resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous
• playback 4-ch 8-ch
• Capability 1-ch @ 4 MP / 2-ch @ 1080p

Network

management Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™

Hard disk

• SATA 1 SATA interface
• Capacity Up to 6TB capacity for each disk

External

interface

• Network interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
• USB interface 2 × USB 2.0

General

• Power supply 12 VDC
• Power ≤ 18W
• Consumption
• (without hard disk)
• ≤ 10 W
• Working temperature -10 to +55º C (+14 to +131º F)
• Working humidity 10 to 90 %
• Chassis 1U chassis
• Dimensions
• (W × D × H)
• 200 × 205 × 48 mm (7.9″ × 8.1″ × 1.9″)
• Weight(without hard
• disk) ≤ 1 kg (2.2 lb.)

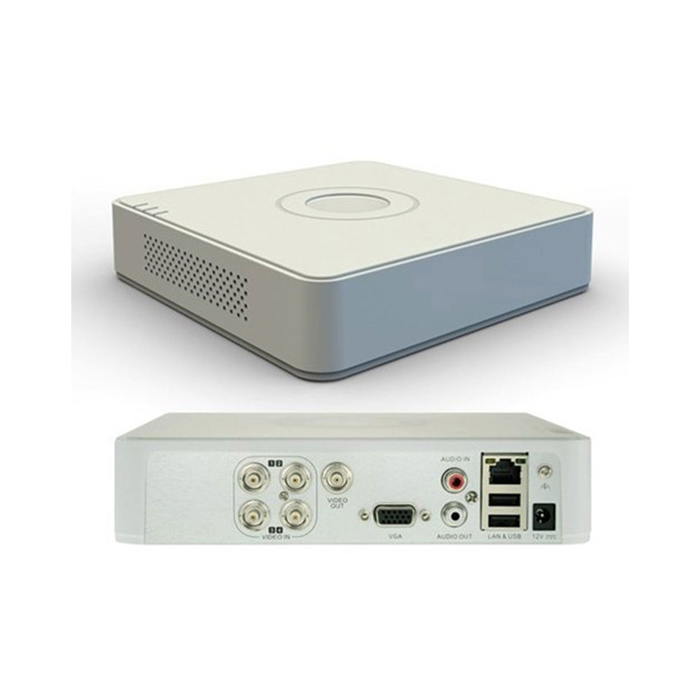

Specifications

Index Name Index Name

1 Power Supply 4 USB Interfaces

2 VGA Interface 5 LAN Network Interface

3 HDMI Interface 6 Ground
