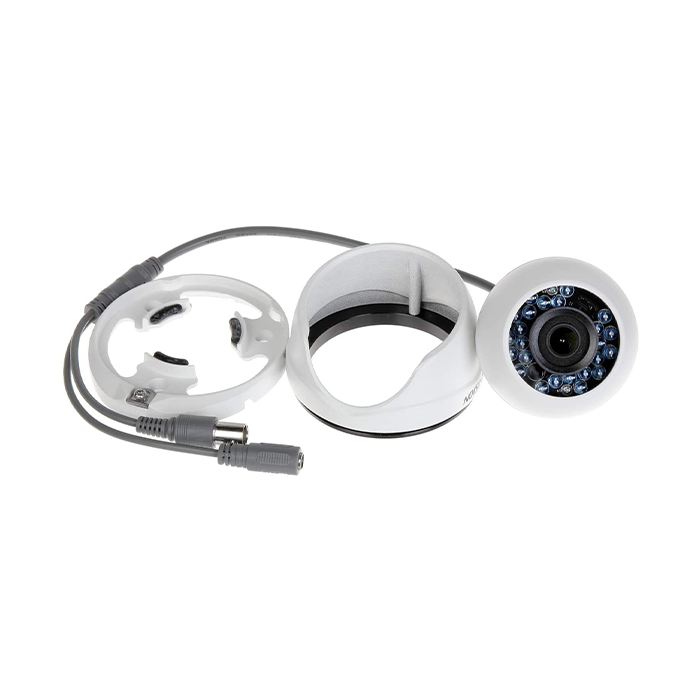

DS-2CE56D0T-IR 1080p 2MP 20 Meter DOME Cameras METAL CASING

Description

Camera

Image Sensor2MP CMOS Image Sensor

Max. Resolution2MP

Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time1/25 (1/30) s to 1/50,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System PAL/NTSC

Lens

Lens Type Fixed Lens

Focal Length & FOV103 ° (2.8 mm), 82.2 ° (3.6 mm), 54 ° (6 mm)

Lens MountM12


Image Settings Brightness, Sharpness, DNR, Mirror

Frame Rate PAL: 1080p@25fps,NTSC: 1080p@30fps

Day/Night Mode Smart/color/BW(Black and White)

Wide Dynamic Range (WDR)Yes

Image Enhancement Yes

AGC Low/middle/high

Interface

Video Output TVI only

General

Material Enclosure: Plastic, Main body: Metal

DimensionΦ 89.5 mm × 69.8 mm (Φ 3.52″ × 2.75″)

Weight Approx. 280 g (0.62 lb.)

Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)

Language English, Chinese

Power Supply12 VDC±15%

Consumption Max. 4 W

IR Range<30m

Approval

ProtectionIP66
